PDF Create MS 100% Stacked Area Chart SDK to create and save Microsoft 100% stacked-area chart to PDF in C#, ASP.NET MVC, Winforms and WPF

.NET XsPDF SDK / Tutorial for editing PDF / C# making ms stacked 100% area chart diagram to PDF file

This C#.NET guide demonstrates how to generate the Microsoft 100% Stacked Area Chart (both 2D and 3D 100% Stacked Area Chart), and insert the MS 100% Stacked Area Chart image to PDF document.

Area stacked-100 chart can be modified in variety parameters, such as size, color, location and rotation. The following C# sample code shows how to create and insert Microsoft Stacked 100% Area Chart to PDF document programmatically.
Please note, before developers using the chart creating code, the MS Chart Control should be referred to your .NET program:

System.Windows.Forms.DataVisualization.Charting (for .NET WinForms project)
System.Web.UI.DataVisualization.Charting (for ASP.NET application)

Make and paint Microsoft 2D 100% Stacked Area Chart to PDF in C# code.

public static void InsertMSChartToPDF()
{
    // Create a new PDF document.
    PdfDocument document = new PdfDocument();

    // Create an empty page in this document.
    PdfPage page = document.AddPage();

    // Obtain an XGraphics object to render to
    XGraphics g = XGraphics.FromPdfPage(page);

    // Create stacked 100 area chart stream object
    Stream chartStream = CreateMSStacked100AreaChart();

    // Convert chart stream to XImage object
    XImage chartImage = XImage.FromStream(chartStream);

    // Insert the chart image to pdf page in any position
    g.DrawImage(chartImage, 50, 50);

    // Save and show the document
    document.Save("MSStacked100AreaChart.pdf");
    Process.Start("MSStacked100AreaChart.pdf");
}

public static Stream CreateMSStacked100AreaChart()
{
    // Create ms chart object
    Chart chart = new Chart();

    ChartArea chartArea = new ChartArea();
    Series series1 = new Series();
    Series series2 = new Series();
    Series series3 = new Series();

    // Input Data Point
    DataPoint dataPoint1 = new DataPoint(0, 5);
    DataPoint dataPoint2 = new DataPoint(0, 8.5);
    DataPoint dataPoint3 = new DataPoint(0, 9);
    DataPoint dataPoint4 = new DataPoint(0, 7);
    DataPoint dataPoint5 = new DataPoint(0, 5);
    DataPoint dataPoint6 = new DataPoint(0, 5);
    DataPoint dataPoint7 = new DataPoint(0, 4);
    DataPoint dataPoint8 = new DataPoint(0, 5);
    DataPoint dataPoint9 = new DataPoint(0, 3.5);
    DataPoint dataPoint10 = new DataPoint(0, 4);
    DataPoint dataPoint11 = new DataPoint(0, 3);
    DataPoint dataPoint12 = new DataPoint(0, 7);
    DataPoint dataPoint13 = new DataPoint(0, 2);
    DataPoint dataPoint14 = new DataPoint(0, 4);
    DataPoint dataPoint15 = new DataPoint(0, 8);

    // Set series1 with data, color, chart type and name
    series1.BorderColor = Color.FromArgb(180, 26, 59, 105);
    series1.ChartType = SeriesChartType.StackedArea100;
    series1.Color = Color.FromArgb(220, 65, 140, 240);
    series1.Name = "Series1";
    series1.Points.Add(dataPoint1);
    series1.Points.Add(dataPoint2);
    series1.Points.Add(dataPoint3);
    series1.Points.Add(dataPoint4);
    series1.Points.Add(dataPoint5);

    // Set series2 with data, color, chart type and name
    series2.BorderColor = Color.FromArgb(180, 26, 59, 105);
    series2.ChartType = SeriesChartType.StackedArea100;
    series2.Color = Color.FromArgb(220, 252, 180, 65);
    series2.Name = "Series2";
    series2.Points.Add(dataPoint6);
    series2.Points.Add(dataPoint7);
    series2.Points.Add(dataPoint8);
    series2.Points.Add(dataPoint9);
    series2.Points.Add(dataPoint10);

    // Set series3 with data, color, chart type and name
    series3.BorderColor = Color.FromArgb(180, 26, 59, 105);
    series3.ChartType = SeriesChartType.StackedArea100;
    series3.Color = Color.FromArgb(220, 224, 64, 10);
    series3.Name = "Series3";
    series3.Points.Add(dataPoint11);
    series3.Points.Add(dataPoint12);
    series3.Points.Add(dataPoint13);
    series3.Points.Add(dataPoint14);
    series3.Points.Add(dataPoint15);

    // Bind series data to chart
    chart.Series.Add(series1);
    chart.Series.Add(series2);
    chart.Series.Add(series3);

    // Set chart 3D style
    chartArea.Area3DStyle.Enable3D = false;

    // Bind chart area to chart object
    chart.ChartAreas.Add(chartArea);

    // Modify chart size
    chart.Size = new Size(400, 300);

    // Render chart graphics to stream
    MemoryStream ms = new MemoryStream();
    chart.SaveImage(ms, ChartImageFormat.Png);

    return ms;
}

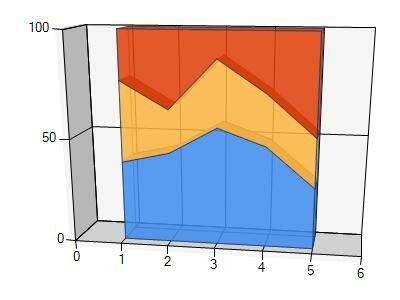

Create and insert MS 3D 100% Stacked Area Chart to PDF in C# code.

All the step and code are the same as above, only need change one line code chartArea.Area3DStyle.Enable3D = false; in the "CreateMSStacked100AreaChart()" to the C# code below.

chartArea.Area3DStyle.Enable3D = true;
chartArea.Area3DStyle.Inclination = 15;
chartArea.Area3DStyle.IsRightAngleAxes = false;
chartArea.Area3DStyle.Perspective = 10;
chartArea.Area3DStyle.Rotation = 10;
chartArea.BackColor = Color.WhiteSmoke;
