PDF Create MS Spline Range Chart SDK to generate and add Microsoft spline range chart to PDF in C#, ASP.NET MVC, Winforms and WPF

.NET XsPDF SDK / Tutorial for editing PDF / C# adding ms spline range chart diagram to PDF document

This C# tutorial demonstrates how to generate the Microsoft Spline Range Chart (both 2D and 3D Spline Range Chart), and insert the MS Spline Range Chart image to PDF Page.

Each point of spline range chart contains two values (start and stop value). The following C# .NET sample shows how to create and save Microsoft Spline Range Chart to PDF document programmatically.
Please note, before developers using the chart making code, the MS Chart Control should be added referrence to your .NET application:

System.Windows.Forms.DataVisualization.Charting (for .NET WinForms program)
System.Web.UI.DataVisualization.Charting (for ASP.NET application)

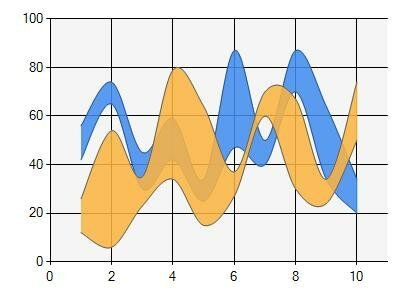

Render and draw Microsoft 2D Spline Range Chart to PDF in C# code.

public static void InsertMSChartToPDF()
{
    // Create a new PDF document.
    PdfDocument document = new PdfDocument();

    // Create an empty page in this document.
    PdfPage page = document.AddPage();

    // Obtain an XGraphics object to render to
    XGraphics g = XGraphics.FromPdfPage(page);

    // Create spline range chart stream object
    Stream chartStream = CreateMSSplineRangeChart();

    // Convert chart stream to XImage object
    XImage chartImage = XImage.FromStream(chartStream);

    // Insert the chart image to pdf page in any position
    g.DrawImage(chartImage, 50, 50);

    // Save and show the document
    document.Save("MSSplineRangeChart.pdf");
    Process.Start("MSSplineRangeChart.pdf");
}

public static Stream CreateMSSplineRangeChart()
{
    // Create ms chart object
    Chart chart = new Chart();

    ChartArea chartArea = new ChartArea();
    Series series1 = new Series();

    // Bind series data to chart
    // If use range chart type, need bind the series to chart first
    chart.Series.Add(series1);
    chart.Series.Add(series2);

    // Input Data Point
    double[] yValue11 = { 56, 74, 45, 59, 34, 87, 50, 87, 64, 34 };
    double[] yValue12 = { 42, 65, 30, 42, 25, 47, 40, 70, 34, 20 };
    double[] yValue21 = { 26, 54, 35, 79, 64, 37, 70, 67, 34, 74 };
    double[] yValue22 = { 12, 6, 23, 34, 15, 27, 60, 30, 24, 50 };

    // Set series1 with data, color, chart type and name
    series1.BorderColor = Color.FromArgb(180, 26, 59, 105);
    series1.ChartType = SeriesChartType.SplineRange;
    series1.Color = Color.FromArgb(180, 65, 140, 240);
    series1.Name = "Series1";
    series1.Points.DataBindY(yValue11, yValue12);

    // Set series2 with data, color, chart type and name
    series2.BorderColor = Color.FromArgb(180, 26, 59, 105);
    series2.ChartType = SeriesChartType.SplineRange;
    series2.Color = Color.FromArgb(220, 252, 180, 65);
    series2.Name = "Series2";
    series2.Points.DataBindY(yValue21, yValue22);

    // Set chart 3D style
    chartArea.Area3DStyle.Enable3D = false;

    // Bind chart area to chart object
    chart.ChartAreas.Add(chartArea);

    // Modify chart size
    chart.Size = new Size(400, 300);

    // Render chart graphics to stream
    MemoryStream ms = new MemoryStream();
    chart.SaveImage(ms, ChartImageFormat.Png);

    return ms;
}

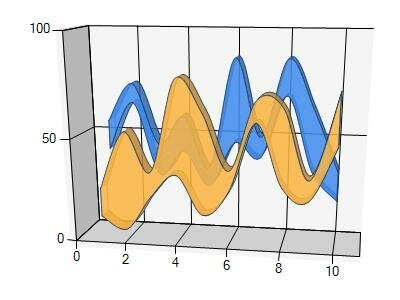

Create and insert MS 3D Spline Range Chart to PDF in C# code.

All the steps are the same as above, only need change one line code chartArea.Area3DStyle.Enable3D = false; in the "CreateMSSplineRangeChart()" to the C# code below.

chartArea.Area3DStyle.Enable3D = true;
chartArea.Area3DStyle.Inclination = 15;
chartArea.Area3DStyle.IsRightAngleAxes = false;
chartArea.Area3DStyle.Perspective = 10;
chartArea.Area3DStyle.Rotation = 10;
chartArea.BackColor = Color.WhiteSmoke;
