This C# tutorial demonstrates how to create the Microsoft Radar Chart (both 2D and 3D Radar Chart), and insert the MS Radar Chart as image to PDF Page.
The following C# .NET demo code shows how to create and save Microsoft Radar Chart to PDF document programmatically.
Please note, before developers using the chart making code, the MS Chart Control should be referred to your .NET application:
- System.Windows.Forms.DataVisualization.Charting (for .NET WinForms project)
- System.Web.UI.DataVisualization.Charting (for ASP.NET application)

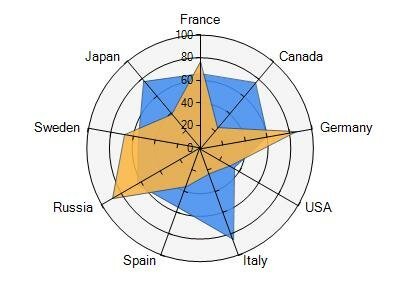

Generate and save Microsoft 2D Radar Chart to PDF in C# code.
public static void InsertMSChartToPDF() { // Create a new PDF document. PdfDocument document = new PdfDocument(); // Create an empty page in this document. PdfPage page = document.AddPage(); // Obtain an XGraphics object to render to XGraphics g = XGraphics.FromPdfPage(page); // Create radar chart stream object Stream chartStream = CreateMSRadarChart(); // Convert chart stream to XImage object XImage chartImage = XImage.FromStream(chartStream); // Insert the chart image to pdf page in any position g.DrawImage(chartImage, 50, 50); // Save and show the document document.Save("MSRadarChart.pdf"); Process.Start("MSRadarChart.pdf"); } public static Stream CreateMSRadarChart() { // Create ms chart object Chart chart = new Chart(); ChartArea chartArea = new ChartArea(); Series series1 = new Series(); Series series2 = new Series(); // Set series1 with width, maker, color, chart type and name series1.BorderColor = Color.FromArgb(180, 26, 59, 105); series1.ChartType = SeriesChartType.Radar; series1.Color = Color.FromArgb(220, 65, 140, 240); series1.MarkerBorderColor = Color.FromArgb(64, 64, 64); series1.MarkerSize = 9; series1.Name = "Series1"; // Set series2 with width, maker, color, chart type and name series2.BorderColor = Color.FromArgb(180, 26, 59, 105); series2.ChartType = SeriesChartType.Radar; series2.Color = Color.FromArgb(220, 252, 180, 65); series2.MarkerBorderColor = Color.FromArgb(64, 64, 64); series2.MarkerSize = 9; series2.Name = "Series2"; // Bind series to chart chart.Series.Add(series1); chart.Series.Add(series2); // Populate series data double[] yValues = { 65.62, 75.54, 60.45, 34.73, 85.42, 55.9, 63.6, 55.1, 77.2 }; double[] yValues2 = { 76.45, 23.78, 86.45, 30.76, 23.79, 35.67, 89.56, 67.45, 38.98 }; string[] xValues = { "France", "Canada", "Germany", "USA", "Italy", "Spain", "Russia", "Sweden", "Japan" }; chart.Series["Series1"].Points.DataBindXY(xValues, yValues); chart.Series["Series2"].Points.DataBindXY(xValues, yValues2); // Set chart 3D style chartArea.Area3DStyle.Enable3D = false; // Bind chart area to chart object chart.ChartAreas.Add(chartArea); // Modify chart size chart.Size = new Size(400, 300); // Render chart graphics to stream MemoryStream ms = new MemoryStream(); chart.SaveImage(ms, ChartImageFormat.Png); return ms; }

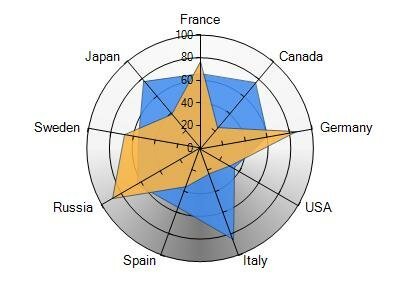

Make and insert MS 3D Radar Chart to PDF in C# code.
All the step and code are the same as above, only need change the chartArea.Area3DStyle.Enable3D = false; in the "CreateMSRadarChart()" to the C# code below.
chartArea.Area3DStyle.Enable3D = true; chartArea.Area3DStyle.Inclination = 15; chartArea.Area3DStyle.IsRightAngleAxes = false; chartArea.Area3DStyle.Perspective = 10; chartArea.Area3DStyle.Rotation = 10; chartArea.BackColor = Color.WhiteSmoke;
